17m/Min Horizontal Band Saw , 5.5kw Fully Automatic Bandsaw Machine

Product Categories

Hanlin Industrial Machinery Co., Ltd

Contact Now

17m/Min Horizontal Band Saw , 5.5kw Fully Automatic Bandsaw Machine

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, T/T

Packaging Details : Plywood case or pallet

Contact Now

Steel Column Horizontal Band Saw

Product information

G4250XG steel column horizontal band saw, mainly used for cutting all kinds of section steel and pipe materials, with Angle sawing function, narrow flange, material saving, energy saving, high cutting precision, safe operation, convenient, high production efficiency.

Parameters	unit
		G4250XG
Maximum sawing specifications:
For 90° Sawing : A. Shape steel (wide crane type)	mm	750X500
B. Round steel	mm	Φ500
45 When sawing: A. Shape steel (width X height)	mm	500X500
B. round stock	mm	Φ500
Minimum opening of vice (90.When)	mm	250
Saw frame brigade turn Angle		- 15 ° - + 45^O
Angle saw cutting accuracy		+ / - 0.5 °
Saw blade specification (length X width X thickness)	mm	About 6185 x41x1. 26
Saw blade speed	m/min	17.35.55.75
Main motor power	kw	5.5
Hydraulic motor power	kw	2.2
Cooling pump power	kw	0.12
Feed speed	Hydraulic step-less	Hydraulic step-less
Hydraulic tank capacity ■	L	About 120
Hydraulic system pressure	MPA	4.5
Machine input power voltage		A.C 380 v, 50 HZ
Table height	mm	About 800
Weight bearing capacity of fuselage (excluding load bearing capacity of material frame)	kg	4000
Length of power frame	mm	2000

Product Tags:

17m/min Horizontal Band Saw

5.5kw Horizontal Band Saw

5.5kw fully automatic bandsaw machine

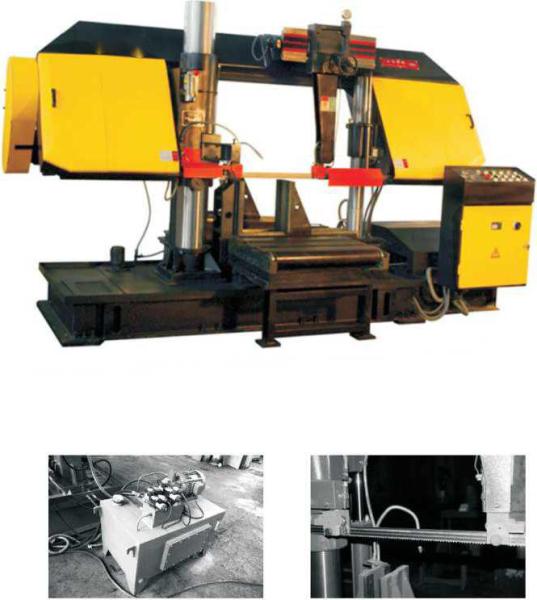

17m/Min Horizontal Band Saw , 5.5kw Fully Automatic Bandsaw Machine Images
