5.2mpa 17m/Min Metal Cutting Horizontal Band Saw For Industrial

Brand Name : HJ

Model Number : GZ4250

Certification : ISO9001

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Delivery Time : 1-2 months

Packaging Details : Plywood case or pallet

Product name : metal cutting horizontal band saw

Usage : Metal Cutting

Weight (kg) : 1500

Key selling points : Competitive Price,Automatic

Rated power : 5.5kw

Contact Now

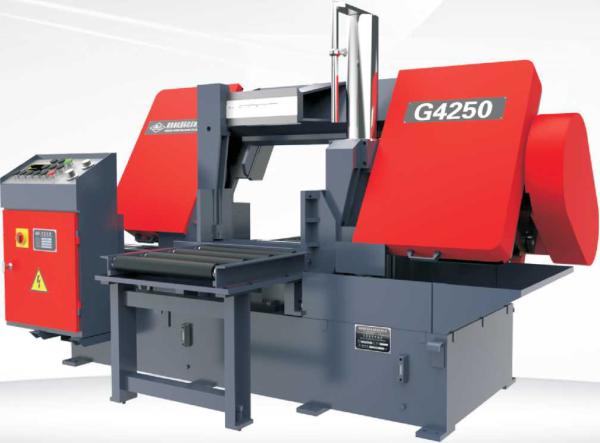

GZ4250 Automatic double column horizontal band sawing machine

The product is mainly used for mass cutting of ferrous metal materials. It is suitable for cutting all kinds of metal bar materials and profiles with the specification of 500mm and step processing. It can be equipped with beam forming device to cut small specification materials into beam Widely used in all walks of life of mechanical processing.

Parameters	unit	specifications
Parameters	unit	G4250	GZ4250
Maximum saw specification
Round stock	mm	φ500	φ500
The material	mm	500X550	500X550
Minimum saw specification	mm	Φ50	φ50
Saw blade specifications	mm	41 x1. 26 x4880	41 x1. 26 x5240
Saw blade speed	m/min	17, 35, 55, 75	17, 35, 55, 75
Feed speed	mm/s	0.2-5 (Hydraulic CVT)	0.2-5 (Hydraulic CVT)
Feeding speed	mm/s		35
Main motor power	kW	5.5	5.5
Hydraulic system pressure	MPa	4.5 ~ 5.2	4.5 ~ 5.2
Table height	mm	660	660
Maximum single feed length	mm	manual	400
Specification for clamping of bunching device	mm	500x (50-150)	500x (50-150)
Machine tool dimensions	mm	3000X2560X1880	3000X2560X1880
Machine net weight	kg	2700	2800
