ISO9001 Approved 4kw CNC Horizontal Bandsaw For Metal Cutting

Brand Name : HJ

Model Number : G4240/GZ4240

Certification : ISO9001

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Delivery Time : 1-2 months

Payment Terms : L/C, T/T

Packaging Details : Plywood case or pallet

Warranty : 1 Year

Condition : New

Weight : 2200kg

Style : Horizontal

Usage : Metal Cutting

Power(w) : 4kw

Contact Now

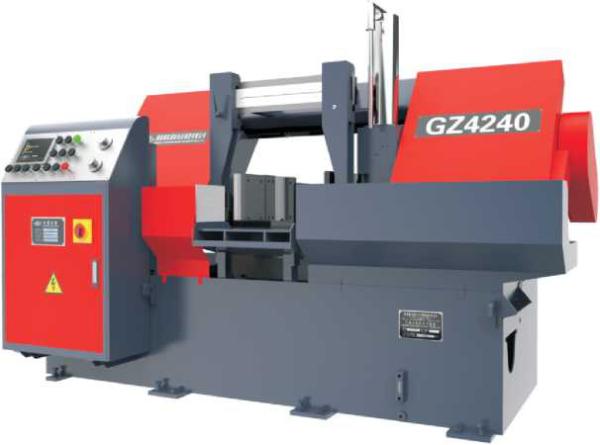

G4240 Horizontal Band Saw Machine

This machine tool is mainly used for black metal material single piece or batch blanking operation. It is suitable for cutting and step processing of all kinds of metal bar materials and profiles with the specification of 400mm. It can be equipped with beam forming device to cut the materials with small specifications into beams.

Widely used in Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction Works , Energy & Mining, Metal Processing Factory

Parameters	unit	Specifications
Parameters	unit	G4240
Round stock	mm	φ410
The material	mm	410X410
Minimum saw specification	mm	φ40
Saw blade specifications	mm	34 x1. 06 x4585
Saw blade speed	m/min	35, 20, 50, 70
Feed speed	mm/s	(Hydraulic CVT) (Hydraulic
Main motor power	kW	4
Hydraulic system pressure	MPa	3.2 ~ 3.8
Table height	mm	700
Maximum single feed length	mm	manual
Specification for clamping of bunching device	mm	400x (30-90)
Machine tool dimensions	mm	2320X2350X1580
Machine net weight	kg	2200
