Industrial 800kw 3300.0m3/H High Head Submersible Mud Pump Low Abrasion 450ZBD-1050

Brand Name : TM

Model Number : 450ZBD-1050

Certification : ISO9001:2000

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 sets per month

Delivery Time : 1-2 months

Packaging Details : Standard export packing

Product name : Submersible Mud Pump

Feature : High Efficiency,Long Life

Application : Sewage,Submersible

Standard or nonstandard : Standard

Warranty : 12 Months

Usage : Water,slurry,chemical industry,pumping of water

Material : Cast Iron

Contact Now

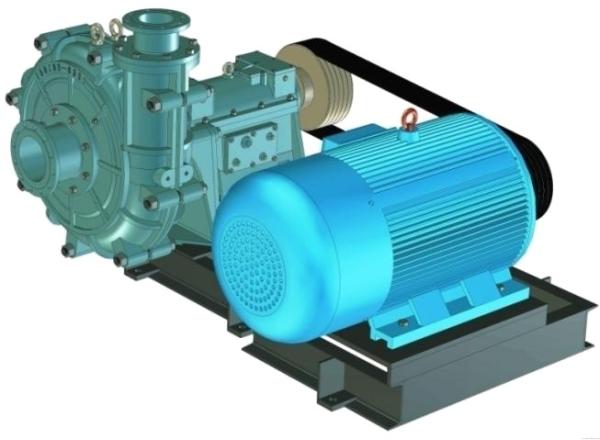

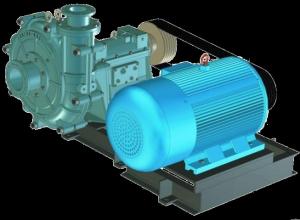

450ZBD-1050 Slag Slurry Pump

the optimization of methods and CAD, CFD and CAPP in pump-design, the slurry pump is of good hydraulic performance, high efficiency and low abrasion and corrosion.
It is engineered in ways of direct connection drive, thus resulting in enhanced efficiency. According to customers’ requirement the belt-convey can also be utilized.
Besides the wide passage, non-clogging and anti-corrosion of vapor is also superb.
The impeller seal combined with packing seal and metric seal ensures no-leakage of slurry.
The adoption of metric bearing with oil lubrication, reasonable structure of cooling system with oil lubrication guarantees the working of bearing in the optimal temperature.
The suction and discharge flange of the pump is processed against the current standard in china to facilitate the fixation in pipeline.
The reliable design grants the tremendous improvement in MTBF.

Clear Water Performance Parameter of ZBG and ZBD Series Slurry Pumps At The Same Speed

Type	Speed n r/min	Capacity Q m³/h	Head H m	Eff. n %	Matching Motor Power kw	Speed n r/min	Capacity Q m³/h	Head H m	Eff. n %	Matching Motor Power kw
		1980.0	67.1	72.2			1644.4	46.3	71.1
450ZBD-1050	590	3300.0	62.0	84.0	800 -1120	490	2740.7	42.8	82.7	500~ 630
		3960.0	58.2	84.8			3288.8	40.1	83.5
		1881.8	60.6	71.9			1562.8	41.8	70.8
450ZBD-1050A	590	3136.3	56.0	83.6	800 - 1000	490	2604.7	38.6	82.3	450~ 560
		3763.5	52.6	84.4			3125.6	36.3	83.1
		1778.1	54.1	71.6			1476.7	37.3	70.4
450ZBD-1050B	590	2963.5	50.0	83.2	630-800	490	2461.2	34.5	81.9	355~ 450
		3556.2	46.9	84.0			2953.4	32.4	82.7
		1686.8	48.7	71.2			1400.9	33.6	70.1
450ZBD-1050C	590	2811.4	45.0	82.9	560-710	490	2334.9	31.0	81.6	315~ 400
		3373.7	42.2	83.7			2801.9	29.1	82.3

Customers offer the following raw data, Our professionals will choose the right pump for you, and present the technical documents as the basis for ordering price.

Media case: flow,head or vertical height, outlet pressure,the length of the transmission pipe^ component and nature of the serous fluid,weight concentration,ore density,median size,the number of elbow, working temperature.
Driven form: according the driven form the driven form table of ZBG,ZBD,ZBQ series slurry pump to choose.(DC,DCD,DCZ,CRZ,CLZ,CR,CRD,CL,CLD,ZVZ,ZV,ZVD,CV,CVD,AZV Etc.)
Seal form: packing seal and impeller seal combined with packing seal and mechanical seal.
Supporting motor: type (as Y.YPT. YJS.YKK.YRKK Etc.),main technical parameters(voltage,insulation levels,level of security Etc.);manufacturer.
Other special requirements: the direction of pump outlet,spare parts,Special tools.
The related structure and technical data are subject to change without notice because of technical progress and the revising for domestic and international standards.Please ask for formal outline drawing from our company after placing an order.
